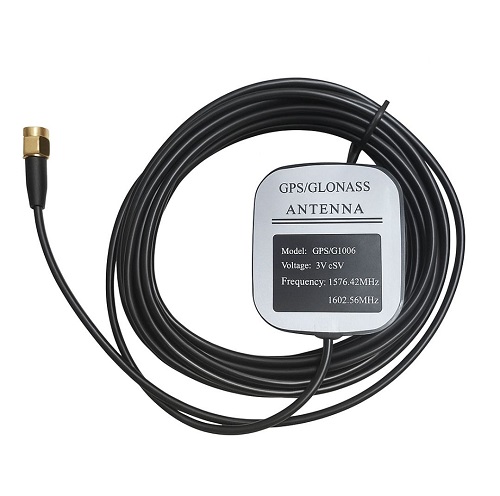

GL006(GPS/GLONASS)

1575.42MHz/1602.56MHz SMA Connector Active GPS/GLONASS Antenna 3m RG174 Cable

Dielectric Antenna
Frequency(MHz):1575/1602
Center Frequency(MHz):1590
VSWR:1.5:1
Bandwidth(MHz): ±5
LNA Gain (Without cable) (dBi):28 Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1575.42 MHz)

VSWR <2.0
DC Voltage(V): 3.0/3.3/5.0
DC Current(mA):11Max
Weight(gram)<110
Size(mm): 25×25
Cable Length 3M
Connector: SMA Male
Mounting:Magnetic base
Housing :Black

Working Temp:-40’C~+85’C

Storage Temp:-45’C~+100’C
